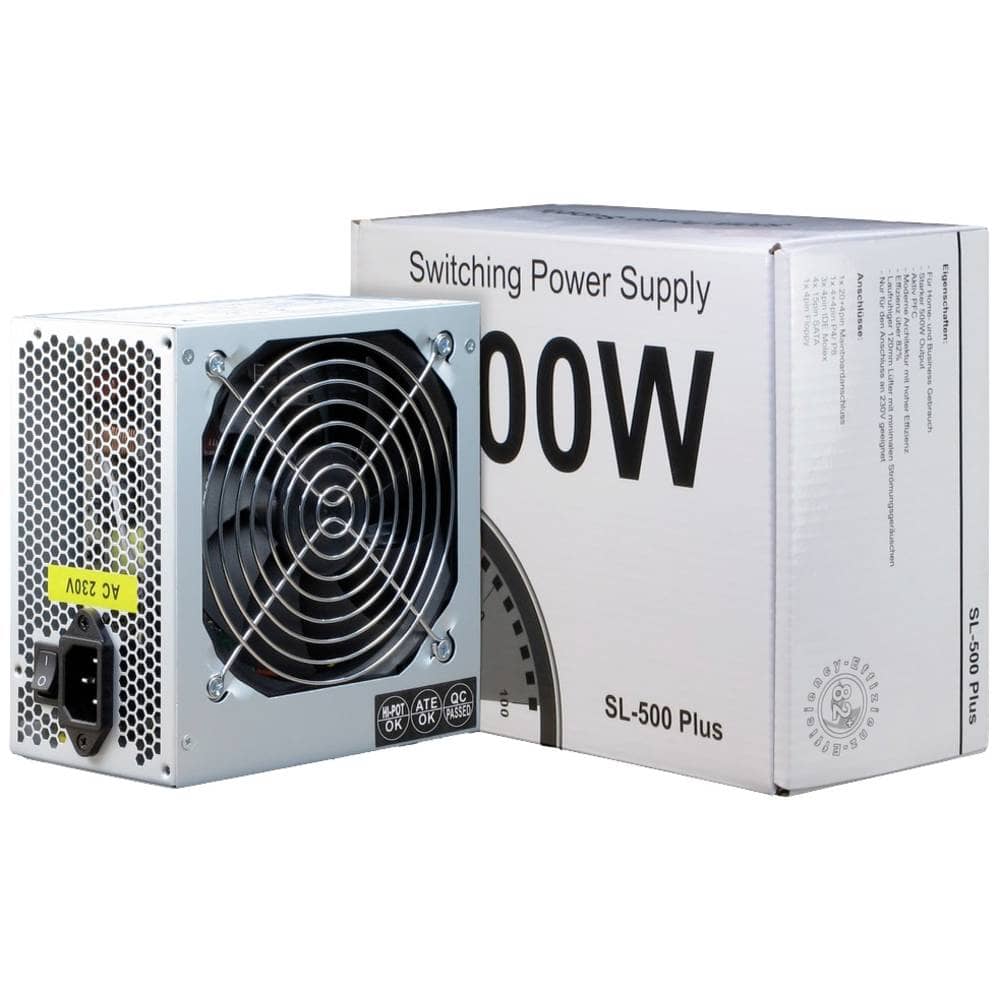

INTER TECH SL-500W PLUS POWER SUPPLY

Description The SL-500 PLUS provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet. With four S-ATA- and three Molex-connectors, PCIe 6 2pin-, 4 4pin and 20 4pin- connectors the power supply offers a lot of options for configuration. The SL-500 PLUS finds its usage in older and new computer systems. Ports & interfaces Motherboard power connector: 20 4 pin ATX Peripheral (Molex) power connectors (4-pin): 3 Number of SATA power connectors: 4 PCI Express power connectors (6 2 pin): 1 PCI Express power cable length: 45 cm CPU power connector (4 4 pin): Y CPU power cable length: 45 cm ATX power connector (20 4 pin): Y Floppy drive power connector: 1 Floppy disk drive connector: Y Cabling type: Non-Modular Weight & dimensions Width: 150 mm Depth: 140 mm Height: 86 mm Weight: 1.26 kg Power Total power: 500 W AC input voltage: 230 V AC input frequency: 50 – 60 Hz Input current: 3 A Power Factor Correction (PFC) type: Active Combined power ( 3.3V): 120 W Combined power ( 12V): 360 W Combined power ( 5V): 120 W Combined power (-12V): 9.6 W Combined power ( 5Vsb): 12.5 W Max output current ( 3.3V): 15 A Max output current ( 12V): 30 A Max output current ( 5V): 16 A Max output current (-12V): 0.8 A Max output current ( 5Vsb): 2.5 A Efficiency: 82% Power protection features: Over current, Over voltage, Short circuit Packaging data Manual: Y Package width: 230 mm Package depth: 170 mm Package height: 95 mm Package weight: 1.45 kg Package type: Box Packaging content Cables included: AC Other features Cable ties included: Y Warranty card: Y Harmonized System (HS) code: 84733020 Design Product colour: Silver Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top On/off switch: Y Performance Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 2.4 Noise level: 25 dB Certification: CE
